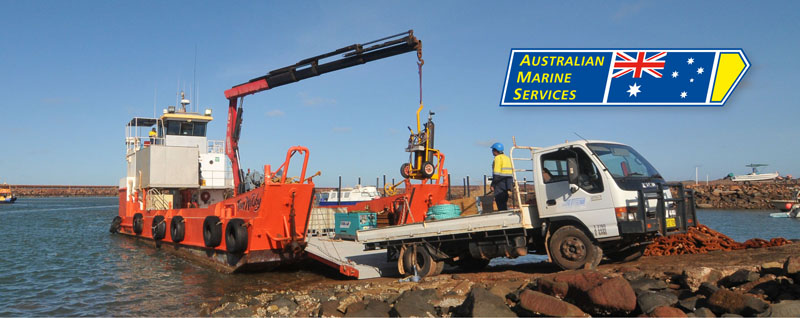

TOM WELSBY – TECHNICAL SPECIFICATION


Principal Particulars

Type of vessel Bow Door Landing Craft/ Utility Vessel
Length 19.83m
Beam 7.31m
Draft Ldn 1.2m
Class/Flag Australian Department of Transport
Rating/Survey USL 2C, 2B
Builder Hornibrook, Brisbane
Deck Cargo 50 T
Last Shaft Survey/ Hull Survey August 2009
Nett Reg. Tonnage 45.99
Loaded displacement 119.47 Tonnes
Lightship displacement 60.77 Tonnes
Gross Tonnage 54.06 British
Official No. 317217
Draft loaded 1.2m approx.
M & H No. 5098

Machinery and Equipment

Main Engine/s 2 x Detroit 6V 71
HP 2 x 135
Cylinders 6V
Aspiration Non turbo
Service Speed 8 Kts
Fuel Use Approx. 140 Lt Hr Maximum
Ratio 3.83:1
Steering Hydraulic rudders
Propeller/s Fixed Pitch 36′ in nozzles / 3′ shafts
Auxiliary 353 GM – 50 KVA
Perkins 3 30 KVA, Deck genset 60KVA silenced
Winches Bow Door windlass/ 5T Stern-deck winch
3 point mooring system installed on request
Fassi F190A.25 Crane 8.65 Kg at 2m/8.25Kg at 14.35m

Capacities

Fuel Cap. 15 000 L
Water Cap. 4 000 L Domestic, 20 000 L Cargo
Pumps M/E driven fire/bilge/ballast
Electric fire/water/ballast/ Diesel deck set
Fire/Water/ballast
Deck Cap. 50 T Clear deck 15.0 x 7.0 m, 2000 Lt Sullage Tank
Additional Cap Bow door 3.6m wide

Accommodation

1 x 2 Berth Cabin Air-conditioned with TV and DVD
1 x 4 Berth Cabin Air-conditioned with TV and DVD
1 x Toilet/Shower/ Change room
1 x fully equipped Air-conditioned galley
1 x washing machine and dryer
* 4 Berth Cabin can be utilised as an office/ survey room or storage. Etc


Wheelhouse – New Aluminium 2009

1 x 36 NM Radome Radar
1 x Furno GP-32 GPS
1 x GD-192 DC 10.4” Colour LCD Plotter
1 x VLH-300 Loud Hailer
2 x 5C630Loud Hailer Horn Speakers
1 x CVS-833 8” LCD colour echo sounder 1 KW
1 x TD50 1 KW 50/200Khz transducer
1 x C Plotmax, C Plot Program and C Max
1 x Toshiba Notebook computer
1 x CTS Autopilot Magnetic compass
1 x 6” Daiko compass
1 x 7” colour monitor c/w 4 x cameras located stern/engine room and deck
1 x ICOM IC-M710 HF Radio
1 x Sony AM/FM CD/ MP3 Player
1 Search light mounted on wheelhouse
1 x Satelite Phone +87 0773 200 217
1 x Mobile Phone 0409 736 544
Email: vessel.tomwelsby@gmail.com
1 x AIS Transmitter


Safety Equipment

10 Man RFD Life raft
16 Solas Lifejackets
406 Epirb
Rescue Zone with 2 Ton A Frame mounted portside
Oil Spill Equipment
Watch Alarm in Wheelhouse


Vessel has just completed extensive refit in August 2009. Inclusive of full surveys, new wheelhouse and electronics, overhaul of main engines, gensets and electrics. A new bow door/ deck crane has been fitted plus a complete sandblast and paint system.
Tom Welsby has stability supplements for:
- Fassi Crane 190A.25
- Grove RT-522 Rough Terrain Crane 20 T
- Caldive Deck Crane used for dive operations, drilling, rock bolting. Used in John Brooks Project, Dampier Port Authority, Shark Bay Salt, Koolan Island Project and Cape Lambert
- 5 Ton Rock Tipper used second trunkline Van Oord ACZ/Woodside
Tom Welsby is used extensively for assembly and disassembly, testing and cleaning of offshore floating hoses import and export eliminating the need to beach or slip.
